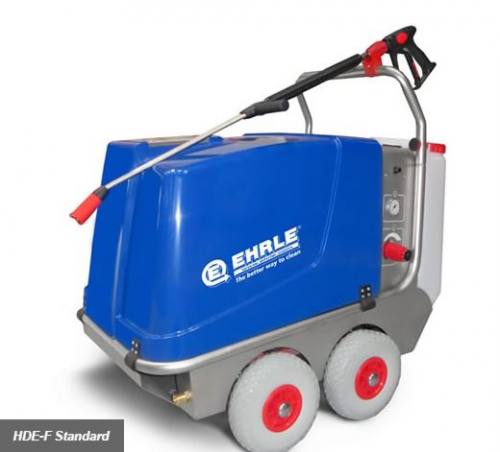

Mobile hot water high pressure cleaners, designed for continuous professional use, electrically heated.

Models

  • HDE840 12 kW (Standard/Premium)
  • HDE840 18 kW (Standard/Premium)
  • HDE840 24 kW (Standard/Premium)
  • HDE840-F 24 kW – Food Appliance (Standard/Premium)

Standard Equipment

Standard

  • Etronic II controls
  • 10 m high pressure hose DN08 – 315 bar
  • Trigger gun with swivel
  • Spray lance (HDE840-F: Double spray lance) 900 mm c/w nozzle protection
  • Stainless steel jet nozzle 25°
  • Water supply separation acc. water reg.
  • Chemical supply in high pressure jet c/w metering valve

Premium

  • Etronic II controls
  • Hose reel
  • 20 m high pressure hose DN08 – 315 bar
  • Trigger gun with swivel
  • Spray lance 900 mm c/w nozzle protection
  • Stainless steel jet nozzle 25°
  • Spray lance 900 mm c/w rotary nozzle
  • Water supply separation acc. water reg.
  • Chemical supply in high pressure jet c/w metering valve
Categories: , ,

Description

Type HDE840-12 kW HDE840-18 kW HDE840-24 kW HDE840-F 24 kW
Order N° 106001 (Standard) 106002 (Premium) 107001 (Standard) 107002 (Premium) 108001 (Standard) 108002 (Premium) 108003 (Standard) 108004 (Premium)
Voltage 3 / 400-415 V / 50 Hz 3 / 400-415 V / 50 Hz 3 / 400-415 V / 50 Hz 3 / 400-415 V / 50 Hz
Operating pressure 30-130 bar / 3-13 MPa 30-130 bar / 3-13 MPa 30-130 bar / 3-13 MPa 30-130 bar / 3-13 MPa
Max. Pressure 150 bar / 15 MPa 150 bar / 15 MPa 150 bar / 15 MPa 150 bar / 15 MPa
Discharge capacity 300-720 l/h 300-720 l/h 300-720 l/h 300-720 l/h
Nozzle size 045 045 045 045
Heating capacity 12 kW 18 kW 24 kW 24 kW
Hot water capacity 30-80 °C 30-80 °C 30-80 °C 30-80 °C
Pump speed 1400 rpm 1400 rpm 1400 rpm 1400 rpm
Connected load 16.8 kW / 26.2 A 22.8 kW / 35.2 A 28.8 kW / 44 A 28.8 kW / 44 A
Electrical protection 3 x 32 A slow-blowing 3 x 50 A slow-blowing 3 x 50 A slow-blowing 3 x 50 A slow-blowing
Weight 119 kg (Standard) 128 kg (Premium) 121 kg (Standard) 130 kg (Premium) 124 kg (Standard)<br/>133 kg (Premium) 124 kg (Standard) 133 kg (Premium)
Dimensions (L x W x H) 1070 x 735 x 785 mm (Standard) 1070 x 735 x 1310 mm (Premium) 1070 x 735 x 785 mm (Standard) 1070 x 735 x 1310 mm (Premium) 1070 x 735 x 785 mm (Standard) 1070 x 735 x 1310 mm (Premium) 1070 x 735 x 785 mm (Standard) 1070 x 735 x 1310 mm (Premium)



  • Robust, corrosion-resistant, self-supporting device chassis
  • Leakage return
  • Impact-resistant device cover made of ABS
  • Stainless steel hotwater boiler with 65 l capacity with pre-heating and buffer storage for immediate hot water use and hot-water preparation during stand-by operation
  • Triplex piston pump with chromium-nickel pump head (hot water-resistant)
  • HDE840-F: Food appliance with abrasion resistant high pressure hose, blue
