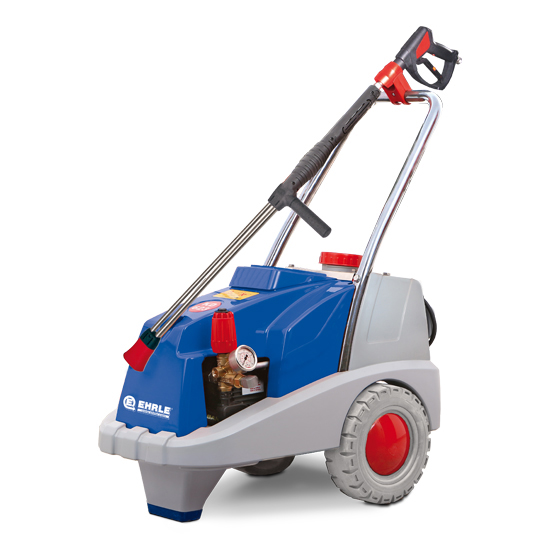

Ehrle – KD 940-F

Ehrle – HD640
Ehrle – KD 1140-F

Call for Price

Mobile cold water high pressure cleaners, designed for continuous professional use, 10 – 14 l/min.

Models

  • KD623 (Standard/Premium)
  • KD823 (Standard/Premium)
  • KD940 (Standard/Premium)
  • KD940-F (Food Processing)

Standard Equipment

Standard

  • 10 m high pressure hose
  • Trigger gun with swivel
  • Spray lance 900 mm c/w vario nozzle
  • Stainless steel jet nozzle 25°
  • 15 l cleaning detergent tank
  • Detergent supply c/w low pressure injector and metering valve

Premium

  • Hose reel
  • 15 m high pressure hose
  • Trigger gun with swivel
  • Spray lance 900 mm c/w nozzle protection
  • Stainless steel jet nozzle 25°
  • Spray lance 900 mm c/w rotary nozzle
  • Water supply separation acc. water reg.
  • 17 l water storage tank
  • Detergent supply c/w low pressure injector and metering valve
  • Stainless steel jet nozzle 25°
Categories: , ,

Description

Mobile cold water high pressure cleaners, designed for continuous professional use, 10 – 14 l/min.

Model KD623 KD823 KD940 KD940-F
Order N° 558001 (Standard) 558002 (Premium) 562001 (Standard) 562002 (Premium) 561001 (Standard) 561002 (Premium) 561003 (Standard) 561004 (Premium)
Voltage 1 / 230 V / 50 Hz 1 / 230 V / 50 Hz 3 / 400-415 V / 50 Hz 3 / 400-415 V / 50 Hz
Operating pressure 30-160 bar / 3-16 MPa 30-140 bar / 3-14 MPa 30-190 bar / 3-19 MPa 30-130 bar / 3-13 MPa
Max. Pressure 180 bar / 18 MPa 165 bar / 16.5 MPa 210 bar / 21 MPa 150 bar / 15 MPa
Water Output 300 – 600 l/h 300 – 720 l/h 300 – 840 l/h 300 – 840 l/h
Max. Inlet temperature 45 °C 45 °C 45 °C 80 °C
Nozzle size 034 045 045 050
Pump Speed 1400 rpm 1400 rpm 1400 rpm 1400 rpm
Connected load 2.9 kW / 14.2 A 3.2 kW / 14.7 A 5.2 kW / 9.1 A 3.5 kW / 8.1 A
Electrical Protection 16 A slow-blowing 16 A slow-blowing 3 x 16 A slow-blowing 3 x 16 A slow-blowing
Weight 46 kg (Standard) / 50 kg (Premium) 46 kg (Standard) / 50 kg (Premium) 54 kg (Standard) / 58 kg (Premium) 54 kg (Standard) / 58 kg (Premium)
Dimensions (L x W x H) 805 x 485 x 950 mm (Standard) / 830 x 485 x 950 mm (Premium) 805 x 485 x 950 mm (Standard) / 830 x 485 x 950 mm (Premium) 805 x 485 x 950 mm (Standard) / 830 x 485 x 950 mm (Premium) 805 x 485 x 950 mm (Standard) / 830 x 485 x 950 mm (Premium)
