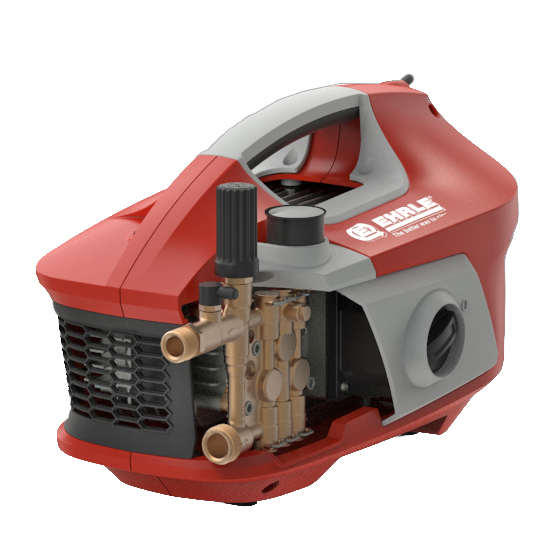

Mobile Cold Water High Pressure Cleaner for professional use.

Models

  • KD223
  • KD323

Standard Equipment

  • High pressure hose 10 m, DN06, 250 bar
  • Trigger gun with swivel
  • Spray lance 900 mm with adjustable nozzle
  • Stainless steel jet nozzle 25°
  • Detergent supply with low pressure injector and metering valve
Categories: , ,

Description

Model KD223 KD323
Order N° 101223 101323
Operating pressure 30-120 bar / 3-12 MPa 30-120 bar / 3-12 MPa
Max. Pressure 140 bar / 14 MPa 140 bar / 14 MPa
Max. Inlet temperature 45 °C 45 °C
Water Output 200-500 l/h 250-600 l/h
Nozzle size 030 045
Pump Speed 2800 rpm 2800 rpm
Voltage 1 / 230 V / 50 Hz 1 / 230 V / 50 Hz
Connected load 2.5 kW / 10.0 A 2.9 kW / 12.5 A
Electrical protection 16 A slow-blowing 16A slow-blowing
Weight 16,8 kg 18,6 kg
Dimensions (L x W x H) 460 x 280 x 260 mm 460 x 280 x 260 mm



  • Robust and self-sustaining device chassis with impact-resistant cover made of ABS
  • Triplex piston pump with brass pump head, ceramic plungers and stainless steel valves
  • Start-Stop System
  • Safety-Valve c/w infinitely variable pressure and quantity regulation
  • 3-point pedestal, rubber-coated with bayonet quick-change device for wall brackets and trolly
  • Rotary ON/OFF switch
  • 5 m connection cable
