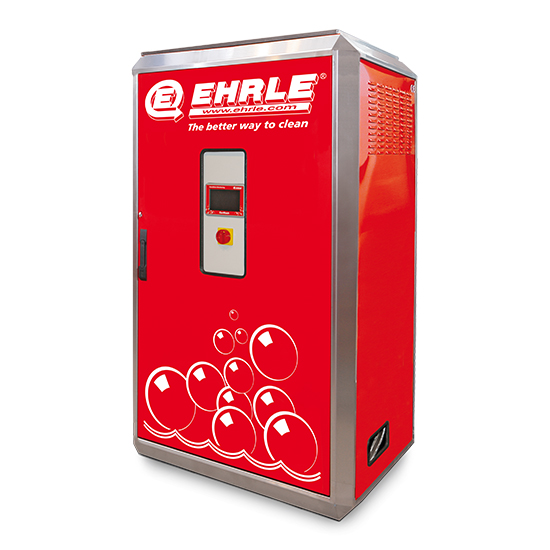

Stationary multiple outlet units, designed for continuous professional use.

Models

  • 2 pumps KSM1840
  • 3 pumps KSM2740
  • 4 pumps KSM3640
  • 5 pumps KSM4540
  • 6 pumps KSM5440

Standard Equipment

  • 7″ touch screen monitor
  • PLC controls Siemens S7-1200
  • Automatic switch On/Off control for high pressure pumps
  • Automatic stand-by operation
  • Pressureless pipes in stand-by
  • Booster supply pump
  • 60 l water storage tank
  • Water supply separation acc. water reg.
  • Maintenance interval display
  • INOX versions: stainless steel (food safe)
Categories: , ,

Description

Model 2 Pumps
KSM1840		 3 Pumps
KSM2740		 4 Pumps
KSM3640		 5 Pumps
KSM4540		 6 Pumps
KSM5440
Order N° 1561
156101 (INOX)		 1562
156201 (INOX)		 1563
156300 (INOX)		 1564
156400 (INOX)		 1565
156500 (INOX)
Voltage 3/ 400-415 V/ 50 Hz 3/ 400-415 V/ 50 Hz 3/ 400-415 V/ 50 Hz 3/ 400-415 V/ 50 Hz 3/ 400-415 V/ 50 Hz
Operating pressure 30-180 bar / 3-18 MPa 30-180 bar / 3-18 MPa 30-180 bar / 3-18 MPa 30-180 bar / 3-18 MPa 30-180 bar / 3-18 MPa
Max. Pressure 200 bar / 20 MPa 200 bar / 20 MPa 200 bar / 20 MPa 200 bar / 20 MPa 200 bar / 20 MPa
Water Output 900-1800 l/h 900-2700 l/h 900-3600 l/h 900-4500 l/h 900-5400 l/h
Nozzle size 2 x 050 3 x 050 4 x 050 5 x 050 6 x 050
Max. inlet temperature 80 °C 80 °C 80 °C 80 °C 80 °C
Pump speed 1400 rpm 1400 rpm 1400 rpm 1400 rpm 1400 rpm
Connected load 14.0 kW / 25.5 A 21.0 kW / 38 A 27.0 kW / 50 A 33.5 kW / 60.5 A 40.0 kW / 72.5 A
Electrical protection 3 x 32 A slow-blowing 3 x 50 A slow-blowing 3 x 63 A slow-blowing 3 x 80 A slow-blowing 3 x 80 A slow-blowing
Weight net 493 kg
Dimensions (L x W x H) 1130 x 800 x 2090 mm 1130 x 800 x 2090 mm 2130 x 800 x 2090 mm 2130 x 800 x 2090 mm 2130 x 800 x 2090 mm
  • Self-supporting, robust, device chassis made from galvanized steel and powder-coated (Option INOX: device chassis made out of stainless steel), suitable for floor installation
  • Triplex-Piston pump with chrome-nickel pump head, hot water-resistant up to 85°c, high-performance ceramic piston, stainless-steel valves
  • Leakage return
  • Booster pump for charging the high pressure pumps (cavitation avoidance)
  • Automatic pump-on and shut-off control by PLC
  • Total-Switch-off between 5 and 600 min – adjustable, with leakage recognition
  • Unloader safety valve for monitoring
  • Pressureless pipe system in standby mode
  • Robust rotary ON/OFF switch
