Ehrle – MP1140
Call for Price

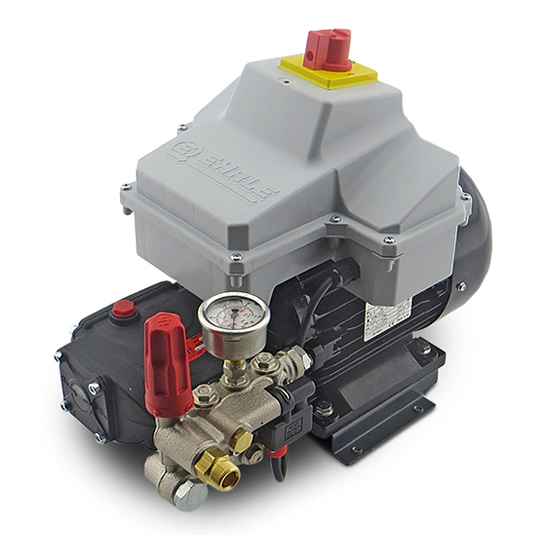

Cold water high pressure cleaner for stationary use.
Models
- MP823 UK
- MP1140
- Description
Description
| Model | MP823 UK | MP 1140 |
|---|---|---|
| Order N° | 234673 | 234660 |
| Voltage | 1 / 240 V / 50 Hz | 3 / 400–415 V / 50 Hz |
| Operating pressure | 30-120 bar / 3-13 MPa | 30-180 bar / 3-18 MPa |
| Max. Pressure | 140 bar / 14 MPa | 200 bar / 20 MPa |
| Water Output | 300-720 l/h | 300-1000 l/h |
| Nozzle size | 050 | 050 |
| Max. Inlet Temperature | 80 °C | 80 °C |
| Motor speed | 1400 rpm | 1400 rpm |
| Connected load | 2.9 kW / 12.8 A | 6.5 kW / 11.7 A |
| Electrical Protection | 16 A slow-blowing | 3×16 A slow-blowing |
| Weight | 54 kg | |
| Dimensions (L x W x H) | 480 x 335 x 335 mm | 715 x 415 x 380 mm |
- Motor pump unit for OEM use
- Triplex piston pump with brass pump head, nickel plated, high-performance ceramic piston, stainless-steel valves
- Leakage return
- Start-stop system with switch-off delay
- Total-switch-off after 20 min with leakage detection
- Unloader safety-valve c/w infinitely variable pressure and quantity regulation
- Robust rotary ON/OFF switch
- 7.5 m connection cable
