Description

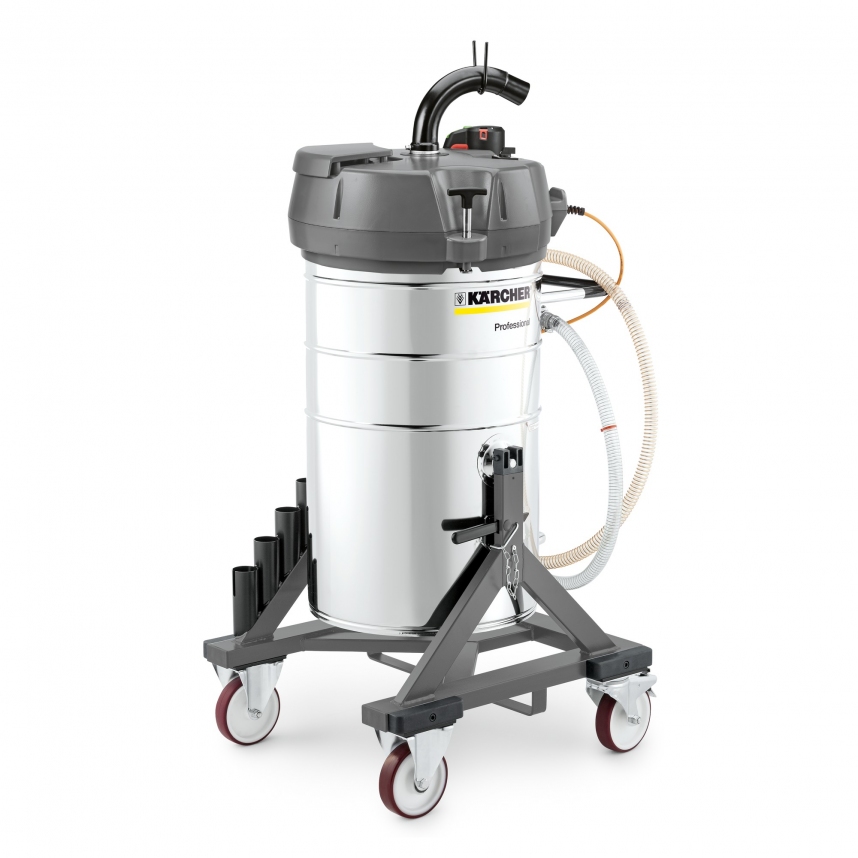

The IVR-L 120/24-2 Tc Me Dp oil vacuum is a compact machine with tilting chassis and 120 litre stainless steel container. The machine can vacuum both large quantities of liquids and mostly dust-free solids (e.g. swarf). Solids can be easily separated from the vacuumed liquids thanks to the optional swarf basket. The IVR-L 120/24-2 Tc Me Dp is versatile in its use thanks to the stainless steel construction, as even corrosive media can be vacuumed without any problems. The 360° rotatable hose connection on the suction head ensures that the suction hose does not get tangled, thereby increasing flexibility. The current filling level is always visible on the drainage pipe. An autonomous barrel pump significantly increases the ability for vacuumed fluids to be reused. The robust design, including oil-resistant castors and power cable, guarantees a long service life through even the toughest of industrial use. It also enables the machine to picked up by a forklift truck.

Specifications

Technical data

Current type
(Ph)
1 / 220 / 240 / 50 / 60
Container capacity for liquids
(l)
120
Air flow
(l/s/m³/h)
118 / 425
Vacuum
(mbar/kPa)
230 / 23
Nominal size 52
Accessory nominal size
(/)
52 / 42

Equipment

  • Accessories included with machine, No
