£3,195.00

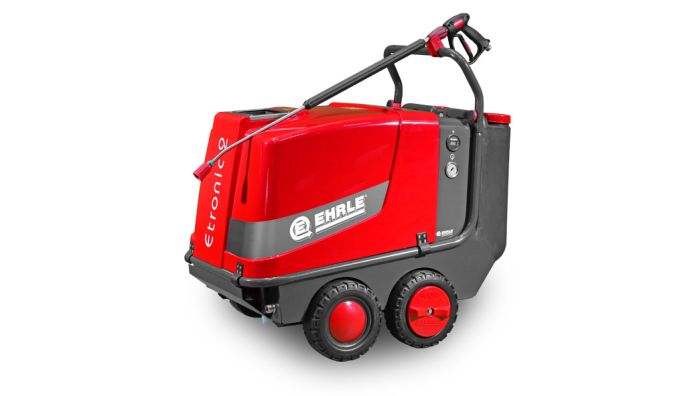

Mobile hot water high pressure cleaner, designed for continuous professional use, oil heated

Models

  • HD823 (Standard/Premium)

Equipment

Standard

  • Etronic II controls
  • 10 m high pressure hose DN08 – 315 bar
  • Trigger gun with swivel
  • Spray lance 900 mm c/w nozzle protection
  • Stainless steel jet nozzle 25°
  • Wassernetz-Trennung gem. DVGW
  • Chemical supply in high pressure jet c/w metering valve

Premium

  • Etronic II controls
  • Hose reel
  • 20 m high pressure hose DN08 – 315 bar
  • Trigger gun with swivel
  • Spray lance 900 mm c/w nozzle protection
  • Stainless steel jet nozzle 25°
  • Spray lance 900 mm c/w rotary nozzle
  • Water supply separation acc. water reg.
  • Chemical supply in high pressure jet c/w metering valve
Categories: , ,

Description

Model HD 823 HD 940 HD 1140 HD 1240
Order N° 496001 (Standard)
496002 (Premium)		 442001 (Standard)
442002 (Premium)		 410001 (Standard)
410002 (Premium)		 411001 (Standard)
411002 (Premium)
Voltage 1 / 230 V / 50 Hz 3 / 400–415 V / 50 Hz 3 / 400–415 V / 50 Hz 3 / 400–415 V / 50 Hz
Operating pressure 30-140 bar / 3-14 MPa 30-190 bar / 3-19 MPa 30-230 bar / 3-23 MPa 30-160 bar / 3-16 MPa
Max. pressure 165 bar / 16.5 MPa 210 bar / 21 MPa 250 bar / 25 MPa 180 bar / 18 MPa
Discharge capacity 300–720 l/h 300–840 l/h 300–1000 l/h 300–1200 l/h
Nozzle size 045 045 043 070
Hot water capacity 30-98 °C (150 °C) 30-98 °C (150 °C) 30-98 °C (150 °C) 30-98 °C (150 °C)
Pump Speed 1400 rpm 1400 rpm 1400 rpm 1400 rpm
Connected load 3.4 kW / 15 A 5.4 kW / 10.1 A 7.6 kW / 14.1 A 7.6 kW / 14.1 A
Electrical protection 16 A slow-blowing 3×16 A slow-blowing 3×16 A slow-blowing 3×16 A slow-blowing
Weight 158 kg (Standard)
167 kg (Premium)		 159 kg (Standard)
168 kg (Premium)		 178 kg (Standard)
187 kg (Premium)		 177 kg (Standard)
186 kg (Premium)
Dimensions (L x W x H) 1070 x 735 x 1020 mm (Standard)
1070 x 735 x 1310 mm (Premium)		 1070 x 735 x 1020 mm (Standard)
1070 x 735 x 1310 mm (Premium)		 1070 x 735 x 1020 mm (Standard)
1070 x 735 x 1310 mm (Premium)		 1070 x 735 x 1020 mm (Standard)
1070 x 735 x 1310 mm (Premium)
  • Robust, corrosion-resistant, self-supporting device chassis
  • Impact-Resistant device cover made of ABS
  • Triplex piston pump with brass pump head, high-performance ceramic piston, stainless steel valves
  • Leakage return
  • Etronic II controls: Start-stop system with switch-off delay, Total-switch-off after 20 min, OPH counter with service information, optical flame monitoring with photoelectric cell and fault indicator light
  • 2-motors system (independent of the direction of rotation) separately for high pressure pump and heating
  • Unloader safety valve c/w infinitely variable pressure and quantity regulation
  • 4 large rubber wheels for rough terrain, with a patented wheel brake 2-way
  • Storage possibility for all accessories
  • Integrated Diesel tank 25 l
  • Integrated detergent tank 20 l
  • Rotary ON/OFF switch, robust and lockable
  • 7.5 m connection cable
  • Removable ergonomic drawbar
