Call for Price

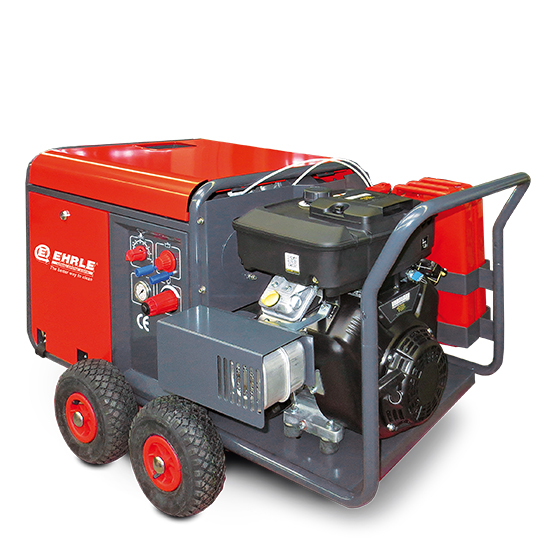

Mobile hot water high pressure cleaner with gasoline engine or diesel engine, designed for continuous professional use.

Models

  • HDB1240 (Standard/Premium)
  • HDB1540 (Standard/Premium)
  • HDD1240 (Standard/Premium)

Standard Equipment

Standard

  • 10 m high pressure hose DN08 – 315 bar
  • Trigger gun with swivel
  • Spray lance 900 mm c/w nozzle protection
  • Stainless steel jet nozzle 25°
  • Water supply separation acc. water reg.
  • Chemical supply in high pressure jet c/w metering valve

Premium

  • Hose reel
  • 20 m high pressure hose DN08 – 315 bar
  • Spray lance 900 mm c/w nozzle protection
  • Stainless steel jet nozzle 25°
  • Trigger gun with swivel
  • Spray lance 900 mm c/w rotary nozzle
  • Water supply separation acc. water reg.
  • Chemical supply in high pressure jet c/w metering valve
  • HDD1240: with Electric starter
Categories: , ,

Description

Model HDB 1240 HDB 1540 HDD 1240
Order N° 138001 (Standard)
138002 (Premium)		 164001 (Standard)
164002 (Premium)		 158001 (Standard)
158002 (Premium)
Order N° deivce with electric-starter 139001 (Standard)
139002 (Premium)		 165001 (Standard)
165002 (Premium)
Engine Gasoline Gasoline Diesel
Operating pressure 30-180 bar / 3-18 MPa 30-280 bar / 3-28 MPa 30-180 bar / 3-18 MPa
Max. Pressure 200 bar / 20 MPa 300 bar / 30 MPa 200 bar / 20 MPa
Water Output 300-1000 l/h 300-1000 l/h 300-1000 l/h
Nozzle size 050 034 050
Heißwasserleistung 30-98 °C 30-98 °C 30-98 °C
Pump Speed 1400 rpm 1400 rpm 1400 rpm
Connected load 13 HP Honda 18 HP B&S 10 HP Yanmar
Electric-Starter Option Option Starter-Generator
Weight 216 kg (Standard)
224 kg (Premium)		 206 kg (Standard)
215 kg (Premium)		 238 kg (Standard)
246 kg (Premium)
Dimensions (L x W x H) 1280 x 800 x 800 mm (Standard) 1280 x 800 x 800 mm (Standard) 1280 x 800 x 735 mm (Standard)
1200 x 800 x 1005 mm (Premium)
  • Robust, corrosion-resistant, self-supporting device chassis
  • Impact-resistant device cover made of steel, galvanized and powder-coated
  • Triplex piston pump with brass pump head, high-performance ceramic piston, stainless-steel valves
  • Leakage-return
  • Gearbox for reducing the high-pressure pump speed
  • Separately driven burner motor for heating
  • 4-fold safety system consisting of pressure-switch, unloader safety-valve c/w infinitely variable pressure and quantity regulation, safety-valve and thermostat, automatic load-idle speed control
  • 4 large rubber pneumatic tires for rough terrain
  • Storage possibility for all accessories
  • Removable standard combustible canister, 20 l
  • External 2-way detergent supply
  • Removable ergonomic drawbar
