JetWash JetWash Plus JetWash / JetWash Plus
Call for Price

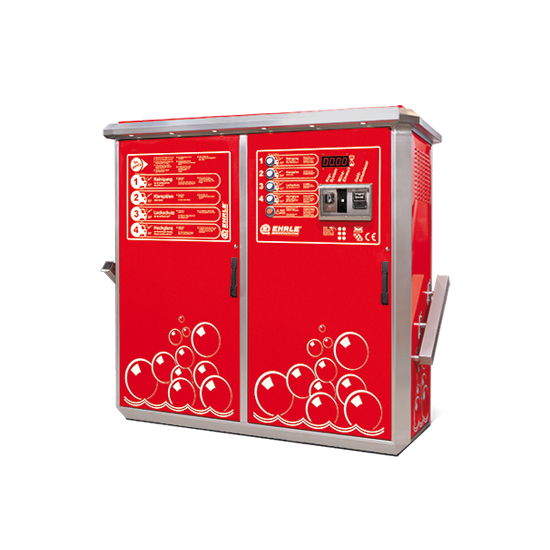

JetWash self-service wash systems with MicroPowder dosing for 1-2 wash bays are the perfect introduction to the professional car wash business.
Models
- 1 Wash bay
- 2 Wash bays
- Description
Description
JetWash / JetWash Plus
| Model | JetWash 1 wash bay |
JetWash 2 wash bays |
JetWash Plus 1 wash bay |
JetWash Plus 2 wash bays |
|---|---|---|---|---|
| Order N° | ||||
| Water output | 660 l/h | 2 x 660 l/h | 660 l/h | 2 x 660 l/h |
| Operating pressure | 130 bar / 13 MPa | 2 x 130 bar / 2 x 13 MPa | 130 bar / 13 MPa | 2 x 130 bar / 2 x 13 MPa |
| Heating energy | gas/oil/destr. heat/electric | gas/oil/destr. heat/electric | gas/oil/destr. heat/electric | gas/oil/destr. heat/electric |
| Hot water output temperature | 60 °C | 60 °C | 60 °C | 60 °C |
| Heating capacity | 35 kW (18kW electric) | 50 kW (24 kW electric) | 35 kW (18kW electric) | 50 kW (24 kW electric) |
| Water softening capacity | 120 m³/h | 120 m³/h | 120 m³/h | 120 m³/h |
| Permeate capacity R/O system | – | – | 300 l/h | 300 l/h |
| Content osmosis tank | – | – | 800 l | 800 l |
| Content micro powder dosing unit | 35 l | 35 l | 35 l | 35 l |
| Content UltraProtection® | 10 l | 10 l | 10 l | 10 l |
| Content SuperFinish® | 10 l | 10 l | 10 l | 10 l |
| Power type | 3 Ph / 400 V / 50 Hz | 3 Ph / 400 V / 50 Hz | 3 Ph / 400 V / 50 Hz | 3 Ph / 400 V / 50 Hz |
| Power intake | 5.0 kW (23 kW electric) | 8.0 kW (32 kW electric) | 5.8 kW (23 kW electric) | 8.8 kW (32 .8 kW electric) |
| Dimensions (L x W x H) | 213 x 80 x 209 cm | 313 x 80 x 209 cm | 213 x 80 x 209 cm | 313 x 80 x 209 cm |
| Weight | 670 kg | 850 kg | 670 kg | 850 kg |
Washing and Care Programs
EHRLE offers 10 combinations of washing and care programs. For this product the following programs are available for JetWash Plus. For JetWash SV 1, 2 and 3SE are available.
System variant 1
- Cleaning with APPMP and high pressure lance
- Rinsing with high pressure lance
- Protection with UltraProtection and high pressure lance
- High Gloss with SuperFinish and high pressure lance
1/1/1 System
1 Washing- and Care product on cleaning program, 1 water and chemical supply, 1 swivelling boom with lance
System variant 2
- Cleaning with APPMP and low pressure lance
- Cleaning with APPMP and high pressure lance
- Rinsing with high pressure lance
- Protection with UltraProtection and high pressure lance
- High Gloss with SuperFinish and high pressure lance
1/1/1 (Low Pressure) System
1 Washing- and Care product on (pre-)cleaning program, 1 water and chemical supply, 1 swivelling boom with lance
System variant 3 SE
- Cleaning with APPMP and high pressure lance and foam brush
- Rinsing with high pressure lance
- Protection with UltraProtection and high pressure lance
- High Gloss with SuperFinish and high pressure lance
1/1/2 System (Suitable for warmer climates)
1 Washing- and Care product on cleaning program, 1 water and chemical supply, 2 swivelling boom with lance and foam brush
System variant 4
- Precleaning with SoftFoam lance
- Cleaning with APPMP and high pressure lance
- Rinsing with high pressure lance
- Protection with UltraProtection and high pressure lance
- High Gloss with SuperFinish and high pressure lance
2/2/2 System
2 Washing- and Care products on (pre-)cleaning program, 2 water and chemical supplies, 2 swivelling boom with lances
System variant 5
- Precleaning with SoftFoam brush
- Cleaning with APPMP and high pressure lance
- Rinsing with high pressure lance
- Protection with UltraProtection and high pressure lance
- High Gloss with SuperFinish and high pressure lance
2/2/2 System
2 Washing- and Care products on (pre-)cleaning program, 2 water and chemical supplies, 2 swivelling boom with lance and foam brush
System variant 6
- Cleaning with APPMP and high pressure lance
- Cleaning with APPMP and foam brush
- Rinsing with high pressure lance
- Protection with UltraProtection and high pressure lance
- High Gloss with SuperFinish and high pressure lance
1/2/2 System
1 Washing- and Care product on cleaning program, 2 water and chemical supplies, 2 swivelling boom with lance and foam brush
System variant 7
- Vorreinigen mit APPMP Niederdruck und Strahlrohr
- Reinigen mit APPMP und Strahlrohr
- Reinigen mit APPMP und Schaumbürste
- Klarspülen mit Strahlrohr
- Lackschutz mit UltraProtection und Strahlrohr
- Hochglanz mit SuperFinish und Strahlrohr
1/2/2 (Niederdruck) System
1 Wasch-/ Pflegemittel bei Programm (Vor-)Reinigen, 2 Zuleitungen, 2 Deckenkreisel mit Strahlrohr und Bürste
SafePillar with System variant 08
System variant 8 SE
- Precleaning with SoftFoam lance
- Cleaning with APPMP and high pressure lance and foam brush
- Rinsing with high pressure lance
- Protection with UltraProtection and high pressure lance
- High Gloss with SuperFinish and high pressure lance
2/2/3 System (Suitable for warmer climates)
2 Washing- and Care products on (pre-)cleaning program, 2 water and chemical supplies, 2 swivelling boom with lance and SoftFoam lance.
Carwash customers can select their own wash programme using 4 illuminated programme buttons. The self-service car-wash system is activated by coins, chips or customer credit keys. The remaining wash credit is clearly shown on a 4-digit display. The entire wash technology is neatly arranged in an elegant stainless steel housing. The JetWash and JetWash Plus series of units are oil or gas-heated or supplied with electric heating.
Water softening is based on the proven ion exchanger softener principle. In the JetWash Plus version, an additional osmosis water treatment system in combination with an 800 l osmosis tank ensures a smudge-free drying result and operational safety, even with above-average customer wash frequency.
| Model | 1 Wash Bay | 2 Wash Bays | 3 Wash Bays |
|---|---|---|---|
| Order N° | 500 | 501 | 506 |
| Water consumption | 660 l/h | 660 l/h | 660 l/h |
| Operating pressure | 130 bar / 13 MPa | 130 bar / 13 MPa | 130 bar / 13 MPa |
| Heating energy | gas/diesel/el. heated | gas/diesel/el. heated | gas/diesel/el. heated |
| Hot water output temperature | 60 °C | 60 °C | 60 °C |
| Heating power | 35 kW / 18 kW, depending on el. heating power | 50 kW / 24 kW, depending on el. heating power | 74 kW / 36 kW, depending on el. heating power |
| Water softening capacity | 120 m³/°dH | 120 m³/°dH | 120 m³/°dH |
| Permeate capacity R/O system | 7200 l/d | 7200 l/d | 7200 l/d |
| Content osmosis tank | 800 l | 800 l | 800 l |
| Content micro powder dosing unit | 35 l | 35 l | 35 l |
| Content UltraProtection® | 10 l | 10 l | 10 l |
| Content SuperFinish® | 10 l | 10 l | 10 l |
| Power type | 3 Ph / 400 V / 50 Hz | 3 Ph / 400 V / 50 Hz | 3 Ph / 400 V / 50 Hz |
| Power intake | 6,8 kW / 24,8 kW (depending on el. heating power) | 9 kW / 33 kW (depending on el. heating power) | 9 kW / 33 kW (depending on el. heating power) |
| Dimensions (L x W x H) | 472 x 80 x 209 cm | 472 x 80 x 209 cm | 472 x 80 x 209 cm |
| Weight | 1360 kg | 1450 kg | 1540 kg |
Washing and Care Programs
EHRLE offers 10 combinations of washing and care programs. For this product the following programs are available:
System variant 1
- Cleaning with APPMP and high pressure lance
- Rinsing with high pressure lance
- Protection with UltraProtection and high pressure lance
- High Gloss with SuperFinish and high pressure lance
1/1/1 System
1 Washing- and Care product on cleaning program, 1 water and chemical supply, 1 swivelling boom with lance
System variant 2
- Cleaning with APPMP and low pressure lance
- Cleaning with APPMP and high pressure lance
- Rinsing with high pressure lance
- Protection with UltraProtection and high pressure lance
- High Gloss with SuperFinish and high pressure lance
1/1/1 (Low Pressure) System
1 Washing- and Care product on (pre-)cleaning program, 1 water and chemical supply, 1 swivelling boom with lance
System variant 3 SE
- Cleaning with APPMP and high pressure lance and foam brush
- Rinsing with high pressure lance
- Protection with UltraProtection and high pressure lance
- High Gloss with SuperFinish and high pressure lance
1/1/2 System (Suitable for warmer climates)
1 Washing- and Care product on cleaning program, 1 water and chemical supply, 2 swivelling boom with lance and foam brush
System variant 4
- Precleaning with SoftFoam lance
- Cleaning with APPMP and high pressure lance
- Rinsing with high pressure lance
- Protection with UltraProtection and high pressure lance
- High Gloss with SuperFinish and high pressure lance
2/2/2 System
2 Washing- and Care products on (pre-)cleaning program, 2 water and chemical supplies, 2 swivelling boom with lances
System variant 5
- Precleaning with SoftFoam brush
- Cleaning with APPMP and high pressure lance
- Rinsing with high pressure lance
- Protection with UltraProtection and high pressure lance
- High Gloss with SuperFinish and high pressure lance
2/2/2 System
2 Washing- and Care products on (pre-)cleaning program, 2 water and chemical supplies, 2 swivelling boom with lance and foam brush
System variant 6
- Cleaning with APPMP and high pressure lance
- Cleaning with APPMP and foam brush
- Rinsing with high pressure lance
- Protection with UltraProtection and high pressure lance
- High Gloss with SuperFinish and high pressure lance
1/2/2 System
1 Washing- and Care product on cleaning program, 2 water and chemical supplies, 2 swivelling boom with lance and foam brush
System variant 7
- Vorreinigen mit APPMP Niederdruck und Strahlrohr
- Reinigen mit APPMP und Strahlrohr
- Reinigen mit APPMP und Schaumbürste
- Klarspülen mit Strahlrohr
- Lackschutz mit UltraProtection und Strahlrohr
- Hochglanz mit SuperFinish und Strahlrohr
1/2/2 (Niederdruck) System
1 Wasch-/ Pflegemittel bei Programm (Vor-)Reinigen, 2 Zuleitungen, 2 Deckenkreisel mit Strahlrohr und Bürste
SafePillar with System variant 08
System variant 8 SE
- Precleaning with SoftFoam lance
- Cleaning with APPMP and high pressure lance and foam brush
- Rinsing with high pressure lance
- Protection with UltraProtection and high pressure lance
- High Gloss with SuperFinish and high pressure lance
2/2/3 System (Suitable for warmer climates)
2 Washing- and Care products on (pre-)cleaning program, 2 water and chemical supplies, 2 swivelling boom with lance and SoftFoam lance.
The entire technical equipment is located between the wash bays. Different self-service carwash system variations can be designed by combining several CarWash technology and AquaClean modules. The advantage of this system is the space-saving arrangement of the self-service wash bays. The space for a CarWash technology container is not required. This arrangement is particularly preferred for tight or angular plots.
The CarWash outdoor modules consist of a technology pump module with micropowder dosing and an AquaClean module for washing water treatment. The technology pump module is available in versions with 2 or 3 wash bays. A double softening system is installed in the AquaClean module, which supplies a constant water quality even with 24 hour operation. The osmosis system ensures sufficient osmosis water and a smudge-free drying result. The CarWash Outdoor series of models is oil or gas-heated or supplied with electric heating. The modules can be expanded in the modular system so that any number of self-service wash bays can be realised. If you would like to extend your self-service wash bays later on, this is no problem with CarWash Outdoor modules.
