Description

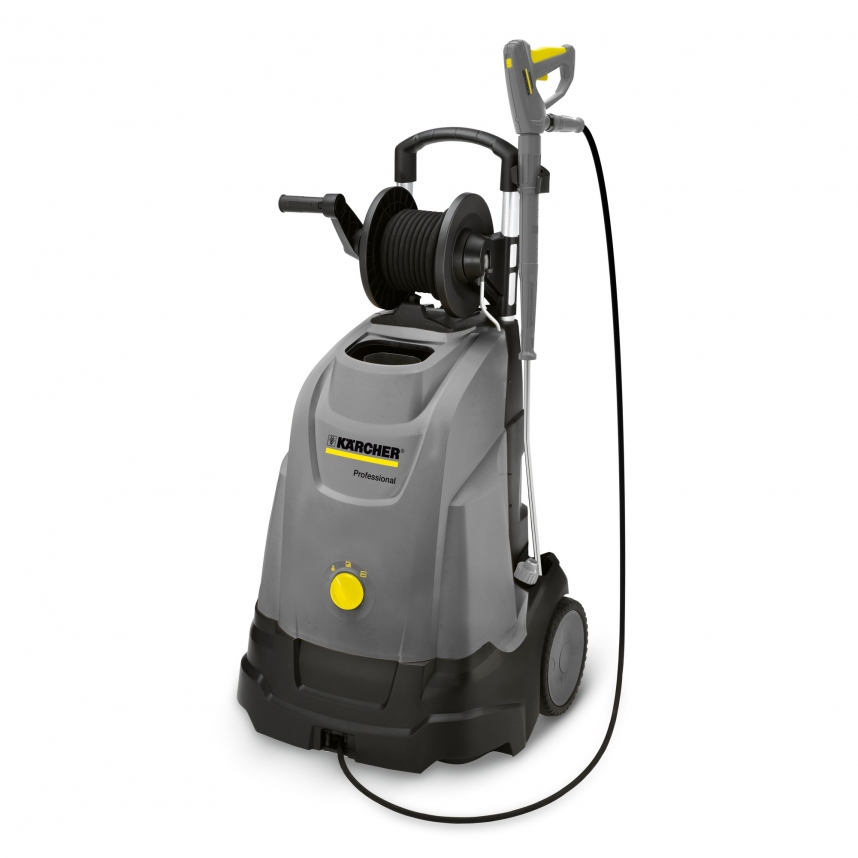

The HDS 5/11 U is a compact hot water high-pressure cleaner which features a 3-piston axial pump, air-cooled 2-pole electric motor and a 15m hose with integrated hose reel. The machine allows for easy transportation and storage thanks to its low weight, compact upright design and large diameter wheels, and is small enough to be transported in a typical estate car. . With simple OFF-COLD-HOT operation, the 5/11 U is the perfect machine for light-medium duty cleaning tasks where time is of the essence.
Specifications
Technical data
| Current type (Ph) |
1 – 230 – 240 – 50 |
| Flow rate (l/h) |
450 |
| Operating pressure (bar/MPa) |
110 – 110 / 11 – 11 |
| Max. temperature (°C) |
max. 80 |
| Power rating (kW) |
2.2 |
| Consumption fuel oil (kg/h) |
2.4 |
| Fuel tank (l) |
6.5 |
| Weight (kg) |
70 |
| Dimensions (L x W x H) (mm) |
620 x 620 x 1160 |
Equipment
- Trigger gun, EASY!Force Advanced
- High-pressure hose, 15 m
- Spray lance, 840 mm
- Integral high-pressure hose reel
- Pressure switch control
