Description

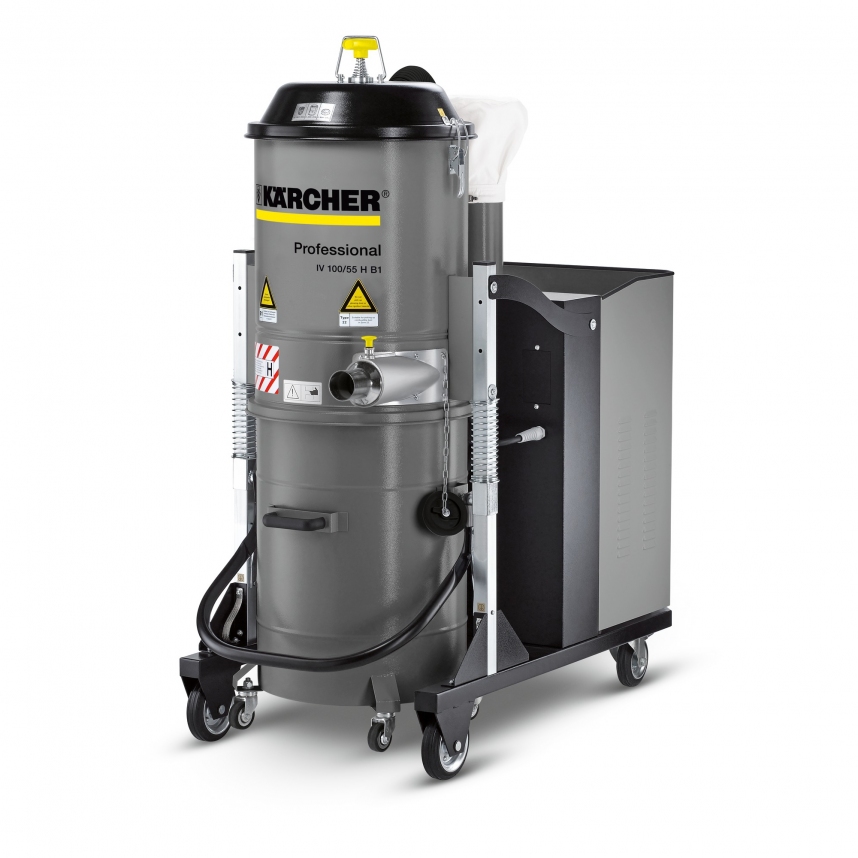

The IV 100/55 M B1 three phase industrial vacuum is especially developed to handle dusts of the dust explosion classes ST1, ST2 and ST3 in zone 22, and can also pick up hazardous dusts. It is designed to pick up liquids and oils as well as dry material such as dust and dirt. Simple to operate, this vacuum uses advanced technology which delivers a long service life, high productivity all at low running costs. With a 100 litre container capacity and a variety of special purpose accessories, the machine is ideal for a broad range of cleaning applications in industry, particularly in the metalworking and plastics industries. The single motor runs from a three-phase power supply and is designed for continuous duty. Depending on the application, container (dry) part-no. 6.394-527.0 or container (wet) part-no. 6.394-529.0 needs to be ordered separately.

Specifications

Technical data

Power rating in operation
(kW)
6
Air flow
(l/s/m³/h)
139 / 500
Vacuum
(mbar/kPa)
280 / 28
Container capacity
(l)
100
Filter area
(m²)
3.9
Main filter dust class H
Sound level
(dB(A))
79
Nominal size 61
Accessory nominal size
(/)
61 / 51
Weight
(kg)
155
Dimensions (L x W x H)
(mm)
1220 x 670 x 1530

Equipment

  • Accessories included with machine, No
  • Container included, No
  • Container for dry applications, 6.394-823.0
  • Dust class, H
  • Type, Z22
  • Filter cleaning, Manual
