Description

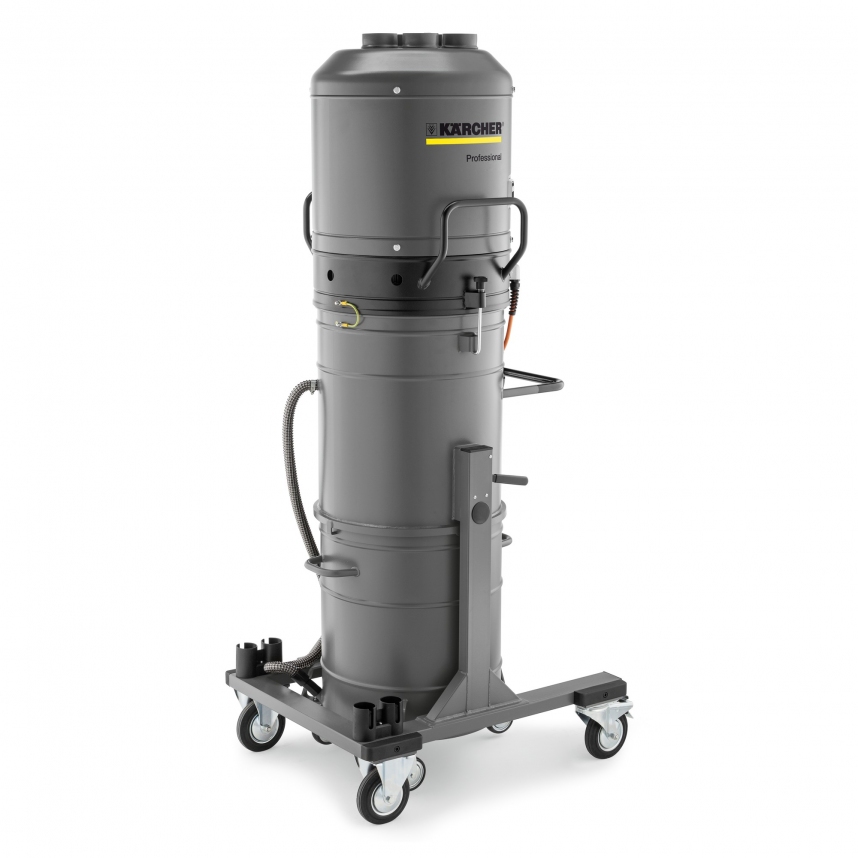

The super-compact class! Despite its high capacity, the IVR 100/40 Pf takes up a comparably low amount of floor space and is therefore perfect for use in factories where space is at a premium. An internally strengthened pocket filter (dust filter class M) with large filter area (1.75 m²), effective filter cleaning and cyclone pre-separation system ensure safe, reliable intake of fine dust. Pressure compensation hose and downholder ensure low-dust vacuuming directly into the disposal sack. The collecting container is connected to the vacuum cleaner via a set-down mechanism that is easy to operate whilst standing. The machine has a comfortable working volume thanks to the integrated sound absorber. The robust construction and wear-free side channel blower guarantee a long service life, even through continuous industrial use.
Specifications
Technical data
Current type (Ph) |
3 / 400 / 50 |
Air flow (l/s/m³/h) |
137.5 / 495 |
Vacuum (mbar/kPa) |
140 / 14 |
Container capacity (l) |
100 |
Motor rating (kW) |
4.7 |
Power rating in operation (kW) |
4.7 |
Filter area (m²) |
1.75 |
Nominal size | 72 |
Accessory nominal size (/) |
72 / 52 |
Sound level (dB(A)) |
62 |
Weight (kg) |
167 |
Dimensions (L x W x H) (mm) |
910 x 760 x 2270 |
Equipment
- Accessories included with machine, No
- Recommended for multi-shift operation
- Optional remote control, –
