Description

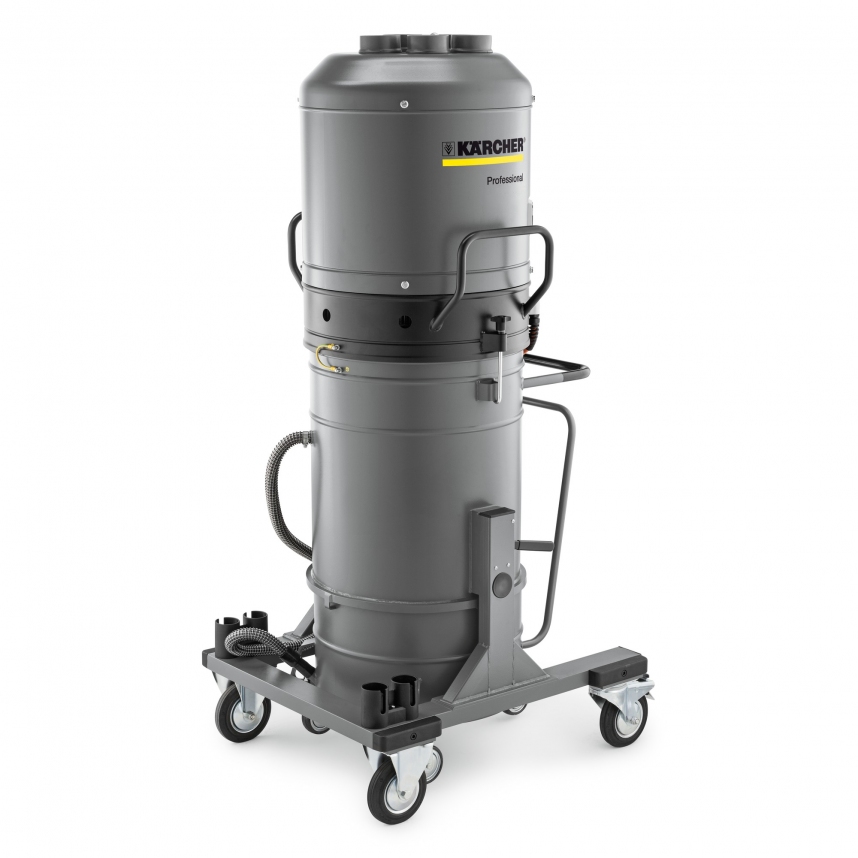

The robust IVR 50/40 Pf is suited to tough, continuous use in the production area thanks to its wear-free side channel blower. An internally-strengthened pocket filter (dust filter class M) with large filter area (1.75 m²), effective filter cleaning and cyclone pre-separation system allow safe, reliable intake of fine dust. The pressure compensation hose and downholder allow low-dust vacuuming directly into the disposal sack. The container is connected to the industrial vacuum via an easy-to-use set-down mechanism. A push handle on the collecting container allows upright operation and helps waste to be transported away ergonomically. The integrated sound absorber reduces noise to a comfortable level.

Specifications

Technical data

Power rating in operation
(kW)
4.7
Air flow
(l/s/m³/h)
137.5 / 495
Vacuum
(mbar/kPa)
140 / 14
Container capacity
(l)
50
Filter area
(m²)
1.75
Main filter dust class M
Sound level
(dB(A))
62
Nominal size 72
Accessory nominal size
(/)
72 / 52
Weight
(kg)
161
Dimensions (L x W x H)
(mm)
850 x 760 x 1970

Equipment

  • Accessories included with machine, No
  • Container included, Yes
  • Filter cleaning, Manual
