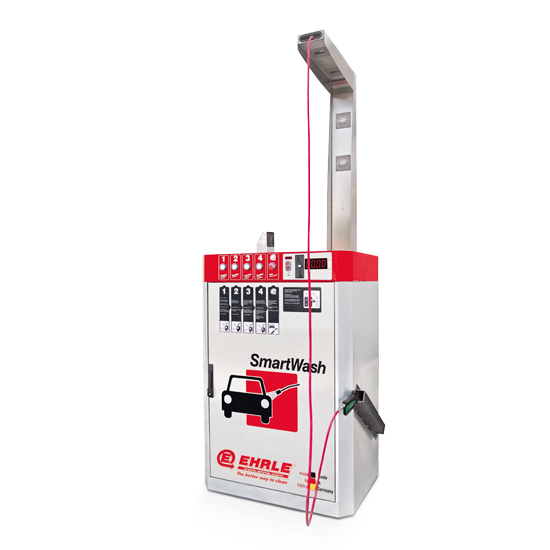

SmartWash / SmartWash Plus
Call for Price
Stationary single station self-service washing areas with micro powder detergents for brushless vehicle care, oil or electrically heated.
The SmartWash Plus Units are equipped with a reverse osmosis water treatment system. The 100 liter storage tank serves to always supply sufficient osmosis water for flawless drying results on the vehicle surface.
Models
- SmartWash (oil heated)
- SmartWash (electrically heated)
- SmartWash Plus (oil heated)
- SmartWash Plus (electrically heated)
Standard Equipment
- Program 1: Cleaning
Brushless high pressure cleaning with hot, softened water and permanent addition of ActivePower Pearl MicroPowder. - Program 2: Rinsing
Rinsing with cold freshwater. - Program 3: Varnish protection
Varnish protection with hot, softened water and addition of UltraProtection® - Program 4: High gloss
SmartWash: High gloss cleaning with hot, softened water and addition of SuperFinish®.
SmartWash Plus: High gloss cleaning with demineralized water and addition of SuperFinish®.
The EHRLE Plus
- PAINT SCRATCHES IMPOSSIBLE
Instead of the otherwise customary brushing function EHRLE relies on fine micro powder beads, viz. the ActivePower Pearl MicroPowder, which is added to the high pressure jet providing a superb cleansing effect without any abrasive behavior. - PAINT DAMAGES
are thus a thing of the past.
- Description
Description
| Model | SmartWash (oil heated) |
SmartWash (electrically heated) |
SmartWash Plus (oil heated) |
SmartWash Plus (electrically heated) |
|---|---|---|---|---|
| Order N° | 536 | 536001 | 536003 | 536001004 |
| Operating pressure | 130 bar / 13 MPa | 130 bar / 13 MPa | 130 bar / 13 MPa | 130 bar / 13 MPa |
| Hot water output temperature | 60 °C | 60 °C | 60 °C | 60 °C |
| Connected load | 400 V, 12 A, 50 Hz | 400 V, 25 A, 50 Hz | 400 V, 12 A, 50 Hz | 400 V, 25 A, 50 Hz |
| Power Consumption | 4,5 kW | 16,5 kW | 4,5 kW | 16,5 kW |
| Water softening capacity | 32 m³/h | 32 m³/h | 32 m³/h | 32 m³/h |
| Permeate capacity reverse osmosis system | – | – | 2.400 l/d | 2.400 l/d |
| Content osmosis tank | – | – | 100 l | 100 l |
| Content micro powder dosing unit | 15 l | 15 l | 15 l | 15 l |
| Content UltraProtection® | 10 l | 10 l | 10 l | 10 l |
| Content SuperFinish® | 10 l | 10 l | 10 l | 10 l |
| Weight | 560 kg | 650 kg | 700 kg | 770 kg |
| Dimensions (L x W x H) | 1200 x 750 x 3250 mm | 1200 x 750 x 3250 mm | 1200 x 1500 x 3250 mm | 1200 x 1500 x 3250 mm |
- Internally located pressure unit for presetting of operating pressure
- Hot water resistant Triplex piston pump with chromium steel pump head, ceramic plungers and stainless steel valves
- Dosing unit for addition of Active-Power Pearl MicroPowder
- Reservoir for hot wax UltraProtection® and high gloss dryer SuperFinish®
- Control panel with program keys for 4 washing and vehicle care programs as well coin acceptor and remaining time display
- Illuminated car washing area by means of LED spots for better visibility in darkness
- Housing entirely made of stainless steel
- Storage for trigger gun
Washing and Care Programs
EHRLE offers 10 combinations of washing and care programs. For this product the following programs are available:
System variant 1
- Cleaning with APPMP and high pressure lance
- Rinsing with high pressure lance
- Protection with UltraProtection and high pressure lance
- High Gloss with SuperFinish and high pressure lance
1/1/1 System
1 Washing- and Care product on cleaning program, 1 water and chemical supply, 1 swivelling boom with lance
System variant 3 SE
- Cleaning with APPMP and high pressure lance and foam brush
- Rinsing with high pressure lance
- Protection with UltraProtection and high pressure lance
- High Gloss with SuperFinish and high pressure lance
1/1/2 System (Suitable for warmer climates)
1 Washing- and Care product on cleaning program, 1 water and chemical supply, 2 swivelling boom with lance and foam brush
