Ehrle – KS 823

Ehrle – HD 940
Ehrle – HD 623 UK Standard

Call for Price

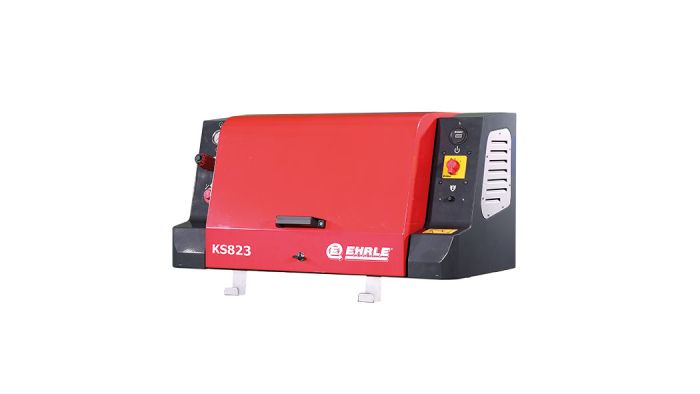

Stationary cold water high pressure cleaners, designed for continuous professional use.

Models

  • KS823 (-INOX)
  • KS1140 (-INOX)

Standard Equipment

  • 10 m high pressure hose DN08 – 315 bar
  • Trigger gun with swivel
  • Spray lance 900 mm c/w nozzle protection
  • Stainless steel jet nozzle 25°
  • 4 l water storage tank
  • Water supply separation acc. water reg.
  • Chemical supply in high pressure jet c/w metering valve
  • INOX versions: stainless steel (food safe)
Categories: , ,

Description

Model KS 823 KS 1140
Order N° 157 (KS823)
157000 (KS823-INOX)		 155 (KS1140)
155000 (KS1140-INOX)
Voltage 1 / 230 V / 50 Hz 3 / 400-415 V / 50 Hz
Operating pressure 30-120 bar / 3-12 MPa 30-180 bar / 3-18 MPa
Max. Pressure 140 bar / 14 MPa 200 bar / 20 MPa
Water Output 300 – 720 l/h 300 – 1000 l/h
Max. Inlet Temperature 80 °C 80 °C
Nozzle size 050 050
Pump Speed 1400 rpm 1400 rpm
Connected load 2.9 kW / 12.8 A 6.5 kW / 11.7 A
Electrical Protection 16 A slow-blowing 3 x 16 A slow-blowing
Weight 102 kg 112 kg
Dimensions (L x W x H) 780 x 510 x 540 mm 780 x 510 x 540 mm
  • Self-supporting, robust, device chassis made from galvanized steel and powder-coated (Option INOX: device chassis made out of stainless steel)
  • Wall bracket
  • Drawable technic tablar on telescopic rails
  • Triplex piston pump with brass pump head, hot water resistant up to 60 °C, high performance ceramic piston, stainless steel valves
  • Leakage return
  • Start-stop system with switch-off delay

Download
