Description

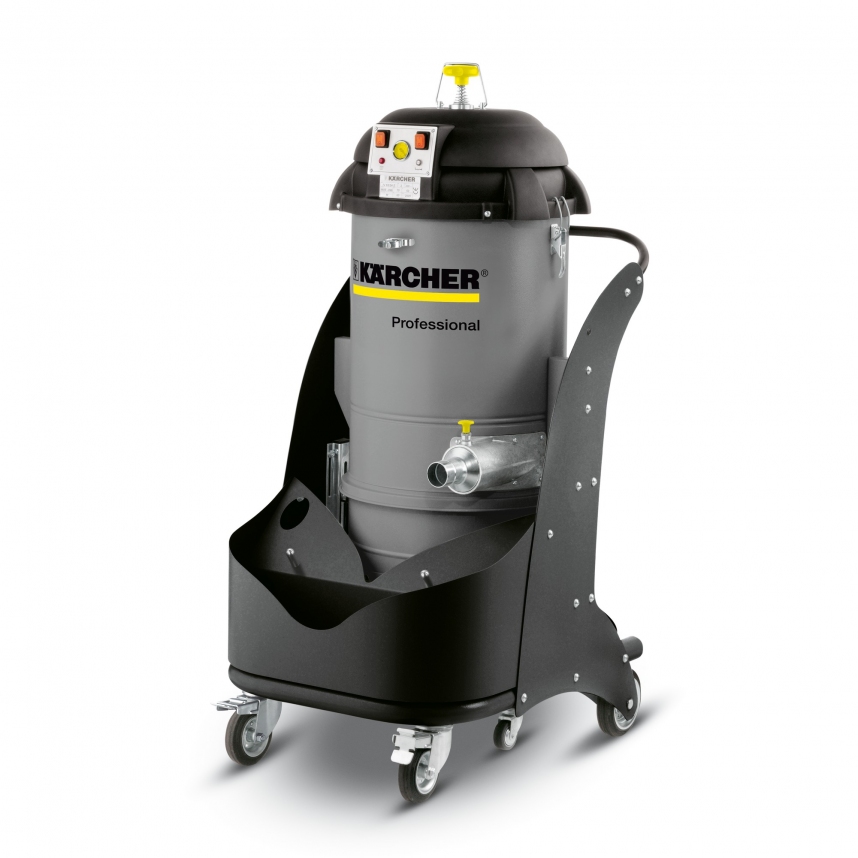

The IV 60/24-2 W mobile single phase industrial vacuum is designed to pick up liquids and oils as well as dry material such as dust and dirt. Simple to operate, this vacuum uses advanced technology which delivers a long service life, high productivity all at low running costs. With a 60 litre container capacity and a variety of special purpose accessories, the machine is ideal for a broad range of cleaning applications in industry, particularly in the metalworking and plastics industries. The twin, separately switched motors require just a single phase supply. Depending on the application, container (dry) part-no. 6.394-523.0 or container (wet) part-no. 6.394-528.0 needs to be ordered separately.

Specifications

Technical data

Power rating in operation
(kW)
max. 2.4
Air flow
(l/s/m³/h)
112 / 403
Vacuum
(mbar/kPa)
235 / 23.5
Container capacity
(l)
60
Filter area
(m²)
2.3
Main filter dust class M
Sound level
(dB(A))
73
Nominal size 51
Accessory nominal size 51
Weight
(kg)
70
Dimensions (L x W x H)
(mm)
870 x 640 x 1410

Equipment

  • Accessories included with machine, No
  • Container included, No
  • Container for dry applications, 6.394-821.0
  • Container for wet vacuuming, 6.394-822.0
  • Filter cleaning, Manual
