Description

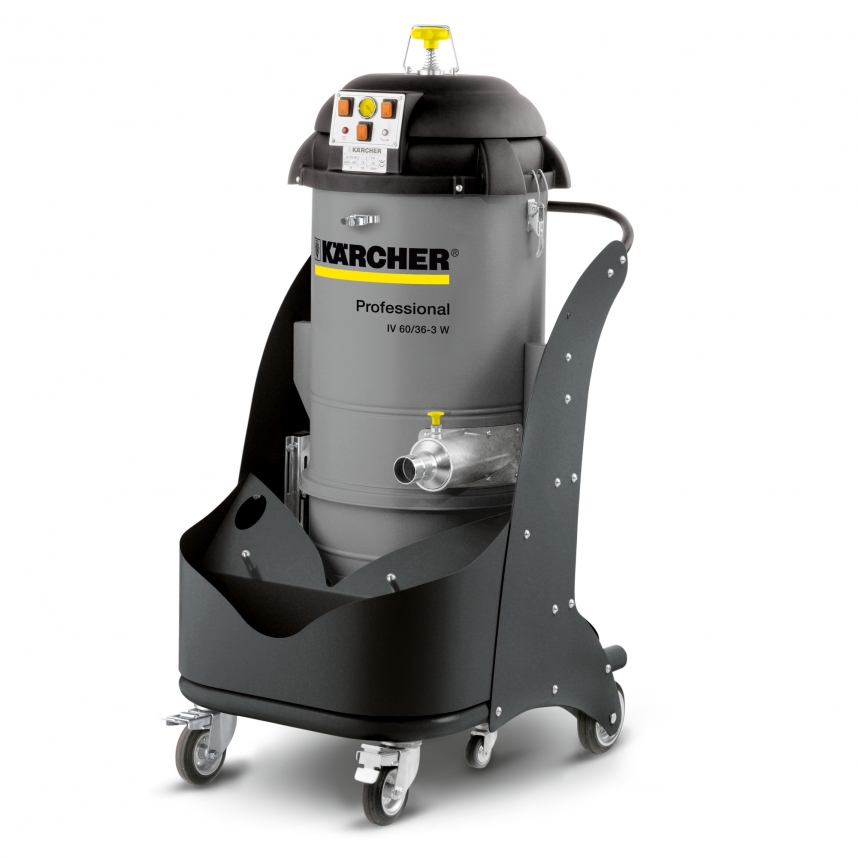

The IV 60/36-3W is avery robust industrial vacuum cleaner used for wet and dry applications. The construction type and the various accessories available make it highly mobile, being used in different sites of the factory and practical for different cleaning tasks. The model is not recommended to be used for continuous duty (3-shift-operation) because of the motor type embedded in it. The three vacuum motors create a high suction power and can be switched on and off separately. As a result the suction power can be adjusted according to each job requirement. The “easy-empty” drop bin fitted with wheels facilitates the transportation of the vacuumed material. The two castors with built-in brakes ensure a good stability even when the machine is placed on slopes. The cyclone pre-separator is a standard feature and pre-separates large amounts of dust before they can get into the filter area. As a result the life-time of the filter is expanded considerably. A main filter with a large filter surface and a high dust absorption rate (material dust class M approved) ensures long operating periods with no interruption. A manual, external filter cleaning device, guarantees long operating periods and ensures a long life-time of the filter. The accessory support placed at the front side of the machine allows a comfortable storage of the entire suction accessory set. In the additional accessory basket can be stored the small nozzles and tools . The cable hook is a convenient cablestorage during work and transport duties.

Specifications

Technical data

Power rating in operation
(kW)
max. 3.6
Air flow
(l/s/m³/h)
168 / 605
Vacuum
(mbar/kPa)
235 / 23.5
Container capacity
(l)
60
Filter area
(m²)
2.3
Main filter dust class M
Sound level
(dB(A))
73
Nominal size 51
Accessory nominal size 51
Weight
(kg)
72
Dimensions (L x W x H)
(mm)
870 x 640 x 1410

Equipment

  • Accessories included with machine, No
  • Container included, No
  • Container for dry applications, 6.394-821.0
  • Container for wet vacuuming, 6.394-822.0
  • Filter cleaning, Manual
