- Description
Description

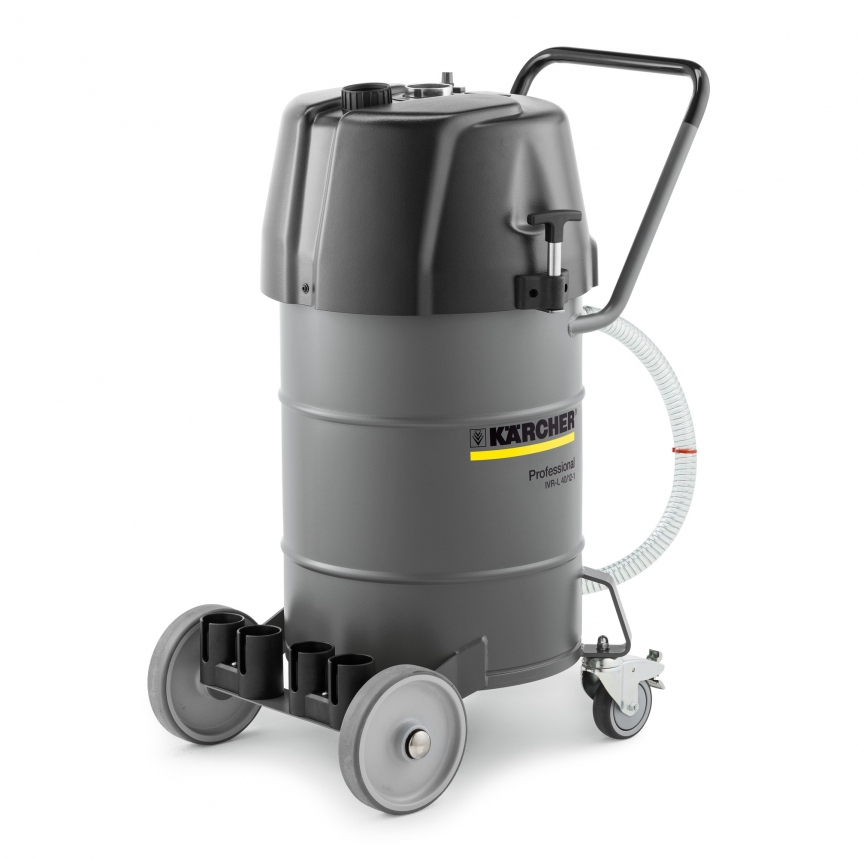

With a motor rating of 1.2 kW, the IVR-L 40/12-1 is an entry-level machine into the world of vacuuming liquids and shavings. The IVR-L 40/12-1 is the smallest wet vacuum in the IVR-L range. This high quality vacuum cleaner is ideal for vacuuming and separating small quantities of liquids and solids like coolants, lubricant emulsions, water or oil containing metal swarf. The swarf is seperated and collected in a swarf basket, and vacuumed liquid is recirculated via the drainage pipe. Drainage can also be carried out using an optional tilting chassis. The current filling level can be easily seen at any time on the drainage pipe. The 360° rotatable hose connection on the suction head makes for comfortable vacuuming in all directions without the suction hose getting tangled. The integrated mechanical fill-level cut-off protects the vacuum cleaner from overfill.
Specifications
Technical data
Current type (Ph) |
1 / 220 / 240 / 50 / 60 |
Container capacity for liquids (l) |
40 |
Air flow (l/s/m³/h) |
59 / 212.4 |
Vacuum (mbar/kPa) |
230 / 23 |
Nominal size | 52 |
Accessory nominal size | 42 |
Equipment
- Accessories included with machine, No
- Automatic fill-level cut-off function
